VidePak Multiwall Kraft Paper Bags: Advanced Design, Materials, and Applications

Multiwall kraft paper bags (also called multi-ply kraft sacks or paper valve sacks) are heavy-duty paper containers engineered for secure transport of powders and granular materials. Composed of two to four laminating layers of kraft paper with a self-supporting “brick-stack” geometry, these bags manage moisture, trapped air, and friction in a highly controlled way. In practice, each bag is a miniaturized engineering system: fiber orientation balances tensile strength, inner plies are tuned for porosity, and precise bottom creases yield stable pallets. The result is packaging that moves products quickly, cleanly, and safely, even under adverse climates.

VidePak, a leading manufacturer of industrial bags, applies these principles in its multiwall kraft paper bag products. With decades of experience and high-capacity production (over 100–300 million bags per year), VidePak’s offering ranges from basic two-ply valve bags to complex multi-ply laminates with barrier and functional coatings. Their products cover 5–60 kg sizes and serve construction, agricultural, food, and chemical industries, among others. All materials and processes are rigorously controlled – from ISO-conditioned kraft rolls to FDA/EU-compliant adhesives – so that every bag meets performance and regulatory needs.

Key Design Features: Strength, Breathability, and Stability

Layered Strength with Controlled Weight: Multiwall kraft bags use 2–4 plies of 70–120 g/m² paper to balance toughness and weight. By combining high-tensile sack kraft layers, the bag withstands handling drops and clamp stress. VidePak can include extensible outer plies (creped or micro-corrugated) that stretch under shock to absorb energy. This extensibility boosts drop survivability by roughly 10–20% at the same mass, allowing a lighter bag design without losing strength. In practice, choosing an extensible paper grade improves tolerance to rough handling and enables gram-by-gram material savings.

Controlled Breathability: Internally, bags often contain high-porosity sack kraft layers and micro-perforations that let trapped air and moisture escape during filling. This venting dramatically accelerates de-aeration: for example, replacing a standard inner ply (30–120 s Gurley) with a high-porosity one (5–30 s) can reduce residual stack height by ~8–15% after settling. The benefit is twofold: faster fill cycles (since less trapped air slows filling) and flatter, more stable pallets (less spring-back). Faster venting also cuts dust clouds during filling, which is crucial for hygiene when bagging flours or similar powders. Careful placement of perforations (away from seams and wear zones) maximizes airflow while avoiding tear paths.

Stack Stability and Friction Control: The classic block-bottom shape of multiwall bags creates a self-standing, brick-like pallet stack. VidePak applies anti-slip surface treatments to the outer ply to fine-tune the coefficient of friction (COF) to about 0.40–0.60. A higher COF means top layers grip the layer below, reducing sliding under vibration or sudden braking. Field data from industrial packers indicate that improving bag-to-bag friction (into this 0.45–0.55 range) can cut leaning-pallet incidents by 25–40%. In effect, slip-resistant coatings keep trailers calm during transit, avoiding costly re-stack or product damage.

Targeted Barrier Solutions: When product sensitivity demands it (e.g. for fatty or odorous contents), VidePak layers incorporate localized barriers rather than full plastic laminates. Dispersion-coated paper layers can reduce moisture and grease pickup (e.g. lowering Cobb values by 50–70%), and small polyethylene patches or linings at the valve prevent aroma or oxygen ingress. This strategy preserves the bag’s overall recyclability (since most of the material remains all-paper) while solving local protection needs. For high-barrier requirements, VidePak also offers laminated options (PE or foil in the valve or as optional full liners), but always with migration testing per EU 10/2011 or FDA limits.

Static Dissipation and Hygiene Options: In dusty or food-processing environments, anti-static and antimicrobial features add safety and cleanliness. VidePak can apply dissipative surface coatings to push the bag’s resistivity into the 10^6–10^11 Ω/sq range (ASTM D257). This allows any charge to bleed off quickly (target: ±5 kV to ±50 V in seconds), reducing spark risk when filling combustible powders. Similarly, silver-ion or other antimicrobial coatings on the inner ply (validated to ≥2–3 log kill in 24h by ISO 22196) give an extra hygiene margin during filling, important for food or pharma uses. These treatments are formulated to comply with food-contact regulations (FDA 21 CFR 176.170/176.180, etc.) so the bags remain safe for ingredients.

The synergy of these features is the real advantage: breathability without creating excessive dust, friction without stiffening the bag, and barriers only where needed. Together they yield a system – not just packaging – that optimizes flow, containment, and safety over the supply chain.

Production Process and Quality Assurance

VidePak’s manufacturing process is a finely choreographed sequence, ensuring each bag meets its spec. Incoming kraft rollstock is first conditioned to plant humidity (per ISO 287) to stabilize dimensions and fold memory. Then plies (2–4 layers at 70–120 g/m²) are combined on a multi-ply tuber and bonded with water-based starch adhesives. VidePak carefully controls adhesive weight so seams are strong but not over-wet (all adhesives used are FDA/EU compliant, e.g. 21 CFR 175.105 for food applications). The entire assembly is precision-cut and folded with tight width/length tolerances (±5 mm) and valve placement accuracy (±3 mm) to fit high-speed filling machines.

If a valve bag is required, VidePak pre-forms and pastes the valve sleeve. The valve mouth is sized (typically 100–140 mm wide) to closely match the customer’s fill nozzle, minimizing back-spray and speeding up closure. Paste formulation (sometimes with PE tape reinforcement) ensures a snug, leak-proof seal under pressure. Graphics are printed (flexo, up to 6–8 colors) with strict dot gain and registration controls, then the tube is cut and bottoms are block-pasted. Special steps (micro-perforation equipment, anti-slip surface treatment, etc.) are integrated as specified.You will see more details on: https://www.pp-wovenbags.com/valve-bags/

Throughout production, VidePak performs on-line quality checks at multiple scales. Individual plies are tested for tensile and tear (ISO 1924-2, ISO 1974) to verify fiber orientation and strength. Filled-bag drop tests are done (ISO 8351-1 at various orientations) to simulate handling. Finished bags are measured for outer COF (ASTM D1894) and air resistance (Gurley TAPPI T460) against targets. Completed pallets undergo compression testing (ASTM D4577/EUMOS) to validate stack stability. For any liners or coatings, migration tests (EU 10/2011 overall migration ≤10 mg/dm²) are performed to certify food safety. Documentation – from Declarations of Compliance to QA plans – is assembled for each order, reflecting VidePak’s ISO9001 and ISO22000 manufacturing standards.

Key Production Steps:
– Conditioning: Stabilize paper at 45–55% RH (ISO 287).
– Ply assembly: Laminate 2–4 plies (70–120 g/m² each) with controlled starch adhesives.
– Valve formation: Pre-form and paste valve mouth to match fill nozzle geometry.
– Printing & cutting: Flexo-print with color registration; cut to precise dimensions.
– Conversion: Form block bottoms; paste side seams; add micro-perfs and surface treatments.
– QA & Documentation: Test drops, COF, compression, porosity; issue compliance certificates and test reports.

Each step targets a measurable outcome: e.g. consistent adhesive coat weight ensures seam integrity, while tight box tolerances mean no nozzle mis-feeds on the filling line. VidePak’s use of Starlinger and W&H equipment – the industry’s best – underpins this precision.

Applications and Climate Considerations

Multiwall kraft bags shine wherever speed, cleanliness, and stability are critical. VidePak supplies these bags to many industries:

• Construction materials (cement, mortar, tile adhesive): These products often generate fines and require bags that can breathe. VidePak uses a porous inner ply (or HPSK grade) to vent hydration heat and moisture, preventing internal pressure buildup. Tough outer layers resist abrasion from cement dust, and reinforced valve pastes block sifting of powder.
• Industrial minerals and pigments: Particles like titanium dioxide or clays are abrasive and dust-prone. Bags for these lines have extra strong outer plies and perfectly tight pasted valves. Anti-sift tapes and localized patches ensure even the smallest particles stay sealed.
• Food ingredients (flour, sugar, semolina, milk powders): Hygiene and migration are key. VidePak uses FDA/EU-compliant papers and adhesives (mapped to 21 CFR 176.170/180, 175.105, 175.300, and EC 1935/2004). Often an inner barrier or PE liner is added for fats or oils, with all polymers tested per EU 10/2011. In addition, antimicrobial coatings on the inner ply are used where extra sanitation is desired.

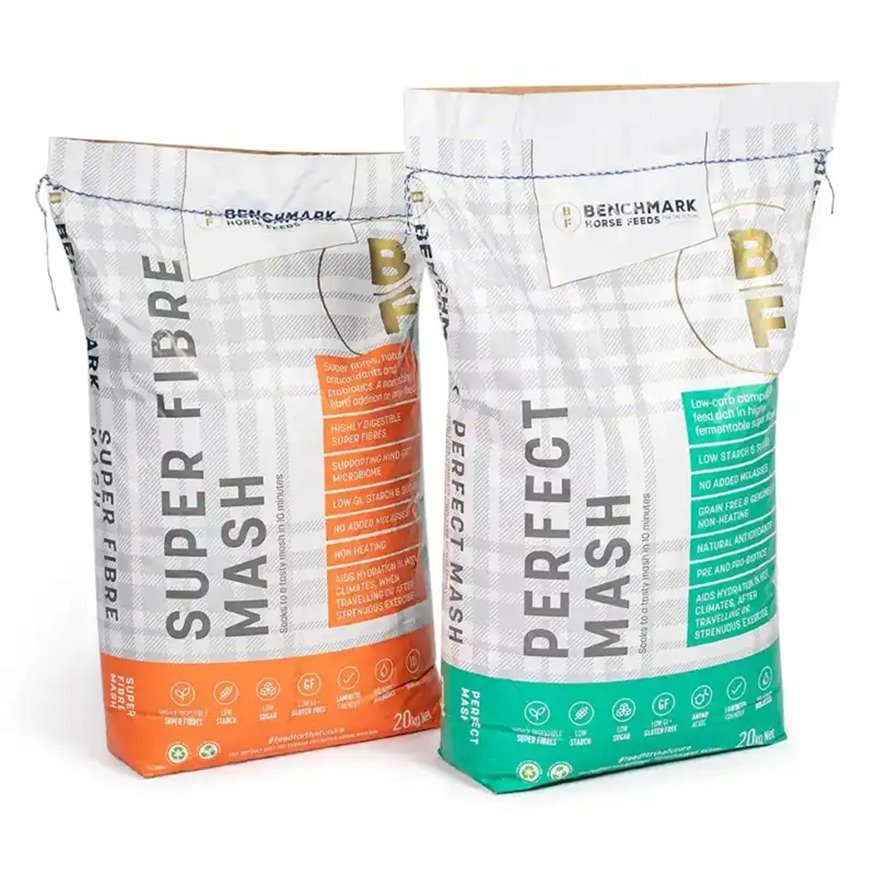

• Animal feed and pet food: These blends may have grease and odor. VidePak offers grease-resistant papers or dispersion barriers and odor-blocking coatings. They ensure the bag is still recyclable (paper fiber stream) by using removable or localized films.

Standards, Specifications, and Quality Metrics

VidePak’s bags are built to meet or exceed industry standards. Key targets include:

Table: Typical parameters and test methods for multiwall kraft bag design.

Figure: VidePak’s compliance with international standards is evidenced by logos for ASTM, ISO 9001, ISO 14001, ISO 22000 and more.

By using formal standards and certificates as guides, VidePak ensures each bag’s tolerances truly drive outcomes. For instance, width/length tolerances of ±5 mm and valve position ±3 mm (per their specs) ensure trouble-free runs on the fastest fill lines. Precision at the mill level (basis weight ±2 g/m², moisture content ~6–8%) translates into predictable plant performance: the effect of tight tolerances is less bag-to-bag variation, meaning fillers and palletizers can run flat-out without hiccups. In short, the rigorous specifications are not decoration; they’re insurance against problems down the road.

Feature Variations: Matching Design to Function

Within the multiwall bag family, different design strategies are deployed by VidePak to match end-use needs:

• Breathable vs. Barrier: For products like grains or plaster, breathable designs are used. These use high-porosity inners (HPSK) and venting patterns to let out moisture and heat. Conversely, for spices or fats, barrier-focused builds are chosen. Dispersion-coated papers and polymer linings greatly lower water vapor and oxygen transmission. Often a small PE patch at the valve is added to lock in aroma. The key is proportionality: only add barrier where it measurably improves shelf-life or reduces claims.
• Anti-Static Measures: In plants handling combustible dust, static discharge is a hazard. VidePak applies dissipative topcoats (coatings with surface resistivity ~10^6–10^11 Ω/sq) to drive rapid charge decay. Some customers use conductive filaments or special fillers to further ground the system. Importantly, such ESD measures are treated like any other spec: they’re tested (ASTM D257) and integrated into the specification only where needed (e.g. chemical or feed plants).
• Closure and Bottom Styles: VidePak offers many end styles. Common valve designs include paper-insert valves (sealed with ultrasonic welding) and pasted valves with tuck-in flaps. For open-mouth sacks, block bottoms are standard for stability. Stitching can be conventional thread, paper-tape (eco-friendly), or heat-sealed tape for extra moisture resistance. The choice depends on product and equipment. For example, woven gauze tails (heat-sealed) might be added for added puncture resistance in heavy cement bags. All closures and bottoms are subject to drop orientation tests to confirm integrity.

Materials and Construction Details

The choice of paper materials in each ply is fundamental. VidePak categorizes its sack kraft papers by function:

1. Standard Sack Kraft (Brown/White): Virgin long-fiber kraft designed for high tear and tensile strength. Basis weights typically 70–120 g/m². This is the workhorse for most plies, providing the baseline durability.
2. Extensible Sack Kraft (XK): Kraft paper with mechanical creping or micro-corrugation that allows stretch. An XK outer ply will deform under shock and recover, increasing energy absorption. Field comparisons show that an XK outer sheet at the same weight often outperforms a stiff sheet by ~10–20% in drop tests. This enables a lighter overall bag if managed carefully.
3. High-Porosity Sack Kraft (HPSK): Paper refined for low Gurley air resistance (e.g. 5–30 s/100 mL). Used as an inner ply to act as the “lung” of the bag. It vents air quickly, flattening stacks. For example, trials indicate switching a ~40 s paper to ~10 s paper can cut internal humidity peaks by 15–25% in the first 2 days.
4. Bleached Kraft: Bright white papers for high contrast printing and a “clean” look. Mechanically similar to brown kraft at the same weight, though they may have slight surface sizing which reduces permeability. VidePak evaluates bleed vs. barrier effects: for some uses the whitening is vital for brand presence.
5. Machine-Glazed (MG) Kraft: A specialty glossy finish on the outer ply, enhancing print sharpness and resistance to scuffing. Useful for retail-pack designs where appearance matters.

Ply Architecture and Bag Geometry

How the plies are stacked and the bag dimensions are chosen has a large effect on performance. VidePak treats the bag as a composite structure:

• Two-ply bags (e.g. 90+80 g): Common for 20–25 kg loads. A typical configuration is a strong outer ply (for print/abrasion) and a more porous inner ply (for venting and controlled tear). This is a minimal but capable design.
• Three-ply bags (e.g. 90+80+70 g): Adds redundancy and the middle “breathing” layer. Used for dusty or demanding lines. With one ply as an HPSK inner, the middle ply vents while still backing up the outer layer under rougher treatment.
• Four-ply bags and above: For very heavy loads, long hauls, or to incorporate a barrier liner. Often the innermost or outermost ply might carry a specialized barrier or coating.

Dimension Guidelines: VidePak designs bag sizes from the pallet up. Standard sack capacities (10, 15, 20, 25, 50 kg) come in typical flat sizes. For example, a 25 kg block-bottom bag might be 500×700 mm with a 120 mm gusset. Valve openings (100–140 mm wide) are placed centrally. Automated packers generally need ±5 mm on bag dimensions and ±3 mm on valve placement, so VidePak’s cutting lines are tuned accordingly. The final width/length is often chosen to maximize pallet cube (e.g. on a 1200×1000 mm pallet, 40 bags in 4×10 footprint with minimal overhang). In one case study, simply changing a bag’s width from 530 to 500 mm (and widening the gusset) reduced leaning pallets by 31% at the same wrap tension. This illustrates how small geometry tweaks – pennies in the design phase – save large headaches later.

VidePak’s Product Portfolio and Capabilities

VidePak is not just a bag maker; it offers an extensive range of heavy-duty packaging solutions built around these design principles. In addition to multiwall kraft bags, their portfolio includes:

• Paper Valve and Open-Mouth Bags: Two- to four-ply designs in brown or white paper, flat or block bottom, for powdered products.
• PE-Coated Paper Bags: Single- or multi-ply paper with internal polyethylene coating for moisture resistance.
• Poly-Paper Woven Bags: Polypropylene woven bags laminated with kraft paper for very high strength and puncture resistance.
• Kraft-Aluminum Composite Bags: Multi-layer paper + foil + sealable film bags for ultimate barrier applications.
• FIBC (Bulk Bags): Jumbo bags (ton-bags) for very large shipments (also referred to in their portfolio).
• PE and FFS Bags: High-strength polyethylene bags and form-fill-seal tubular films.

They tailor each type to the customer’s chemistry and route. For multiwall paper sacks in particular, VidePak utilizes state-of-the-art lines from Starlinger and W&H, enabling high precision and volume. All raw materials are 100% virgin (no reclaimed fiber), and production is ISO 9001 certified. With 20+ years in business and 500+ employees, VidePak exports to over 70 countries, supporting large orders with rapid turnaround. For example, production of kraft paper bags exceeds 100 million per year and the overall heavy-duty bag output is around 300 million units annually.

Customization is a strength: VidePak can print any artwork (multi-color flexo up to 8 colors), and offers custom sizes, thicknesses, gusset patterns, and closures on a per-order basis. Even in low quantities, digital printing pilots can be run for testing (with a unit cost premium). However, for best economy, they standardize high-velocity SKUs to avoid repeat setups. They publish configuration “menus” (ply weights, barrier options, coating levels, etc.) so that sales, QA, and production all speak a common language when designing a bag for a customer’s product.

Implementation and Best Practices

Success with multiwall paper bags requires coordination between design and operations. VidePak emphasizes operator training and SOPs:

• Operator Training: Ensuring fillers mate the correct valve with each bag, that paper tails are cut cleanly, and that block bottoms are fully pasted. Even a tiny speck of powder in a valve paste zone can cause leaks.
• Environmental Control: Keeping the bag conditioning (warehouse RH around 50%) and avoiding direct sunlight on rolls. High humidity warehouses are handled with extra barrier or wrapping strategies.
• Routine Audits: Regularly measuring COF on the packing line (ASTM D1894) to ensure anti-slip coatings are not worn off; checking drop performance if materials change; verifying ESD compliance if dust is present.

VidePak can support these steps with documentation: sampling plans with AQL levels tied to risk (e.g. stricter AQL for food-grade batches), and detailed QA checklists. They also encourage cross-department communication: packaging engineers, warehouse managers, and procurement teams review the “risk register” together, covering items like valve contamination, trapped air, pallet slip, and static. This ensures that solutions (increase micro-perf, add anti-slip coat, ground the filling table) are institutionalized.

Conclusion

Multiwall kraft paper bags are far more than simple sacks – they are engineered multi-material systems tuned for each supply chain. For procurement managers and packaging engineers, the message is: specify the system, not just the bag. Work with a partner like VidePak who can translate your product’s risks (moisture, dust, static, aroma, hygiene) into a clear set of bag features. The payoff shows up in fewer customer complaints, fewer on-time delivery issues, and a smoother supply chain. In short, VidePak’s multiwall kraft paper bags provide a durable, recyclable, and precisely engineered container for critical goods, backed by modern manufacturing and quality controls.
